Project Bluey

Recently, I watched JvPeek's stream on Twitch. During the stream, I noticed that when viewers donate 300 Bits, there's a chance to trigger a soap bubble machine, which is controlled by an ESP. Inspired by this, I decided to build my own version of this device. To get started, I ordered the following parts:

The idea

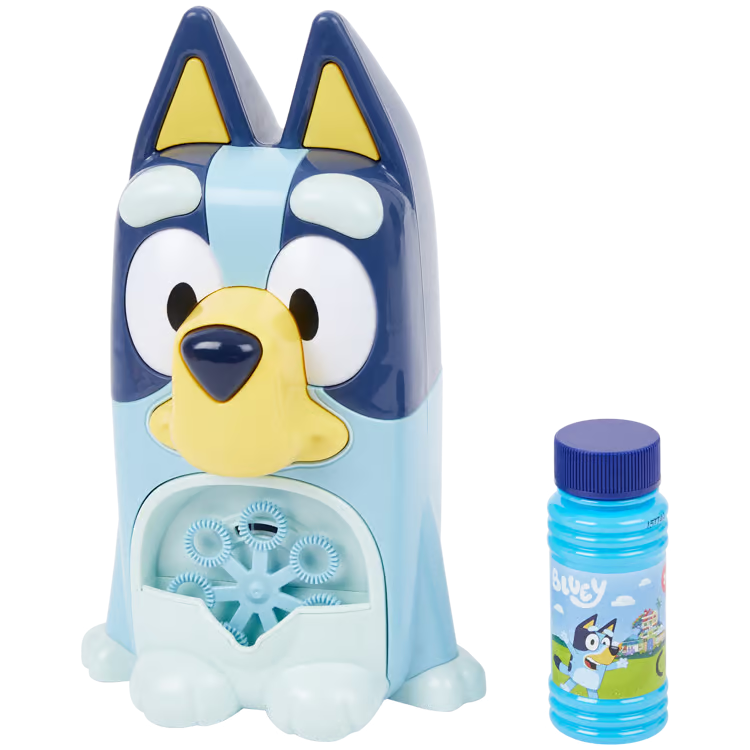

Inside the machine, there is a lot of space for my planned additions.
IMG-20240816230722568.png|center|500

My plan is to add a D1 Mini with an L298N board to control the motor. Additionally, I want to be able to control the speed. Later on, I might add some LEDs to its eyebrows, which should be doable.

After a bit of planning, I decided to remove the inlay of the battery container to fit my own electronics there and maintain them if needed. This way, I only have to remove one screw to access my electronics.

Building the "Upgrade"

Adding the components

I placed one of the USB-C connectors in the back of the figure.

After experimenting for a while, I discovered that the USB-C connector lacked a control circuit inside. When I requested power, it essentially stopped working. So, I ordered a new board from Amazon and cut the cables on this one.

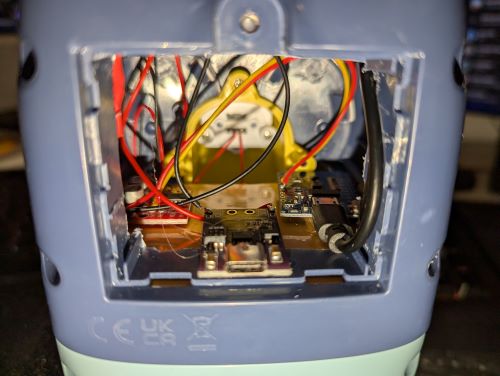

After fixing the power issue, I managed to fit everything inside the space behind the battery case. I placed some cardboard inside the case and used hot glue to secure the components in place.

IMG-20240816230722764.jpg|center|500

ESPHome Code

To control the motor, I use ESPHome, which is integrated with Home Assistant. This allows me to use automations and events from within my home to trigger the machine.

I use the built-in fan component to control the speed in Home Assistant.

esphome:
  name: bluey
  friendly_name: Bluey

esp8266:
  board: d1_mini

#
# Removed standard stuff here
#

# Define the pins
output:
  - platform: esp8266_pwm
    id: motor1_forward_pin
    pin: D2
  - platform: esp8266_pwm
    id: motor1_reverse_pin
    pin: D1

# Use the fan component
fan:
 - platform: hbridge
   id: motor_1
   name: 'Blasebalg'
   pin_a: motor1_forward_pin
   pin_b: motor1_reverse_pin
   decay_mode: slow
   on_turn_on:
    - logger.log:
       format: 'Motor 1: on - duration = %d ms, direction = %d'
       args: ['id(motor_1_duration)', id(motor_1).direction]
   on_turn_off:
    - logger.log: 'Motor 1: off
